DC-DC Charger | Renogy | DCC30S 12V 30A Dual Input DC to DC Battery Charger with MPPT
$315.00
Sale price
$315.00
Regular price
Skip to product information
Back to Electrical
DC-DC Charger | Renogy | DCC30S 12V 30A Dual Input DC to DC Battery Charger with MPPT
$315.00
Sale price
$315.00
Regular price
Pickup available at Export Drive
Usually ready in 2-4 days

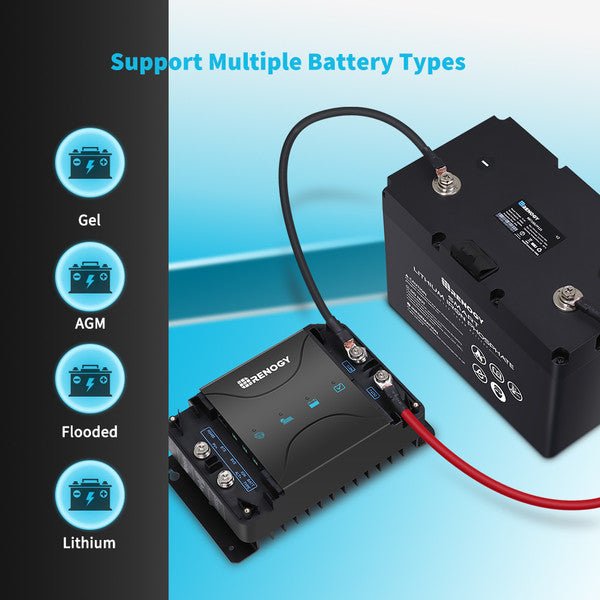

Renogy's DC to DC MPPT on-board Battery Charger is designed to give you options! This multi-stage, multi-input battery charger can charge a service battery from a starting battery linked to an alternator or by utilizing solar panels connected directly to the unit. While your vehicle's alternator prioritizes your starting battery, this unit will allow your solar system to charge your service battery first! It's the smart way to keep yourself fully charged and off-grid longer! And with multi-stage charging and multi-chemistry functionality, Renogy's DC to DC MPPT Charger has you covered whether you're using Flooded, Gel, AGM, or Lithium batteries. With RJ45 communication port featured, you can unlock monitoring features exclusively using the BT-2 Bluetooth Module and Renogy DC Home App, control and monitor the device remotely through your phone in real time.
KEY FEATURES

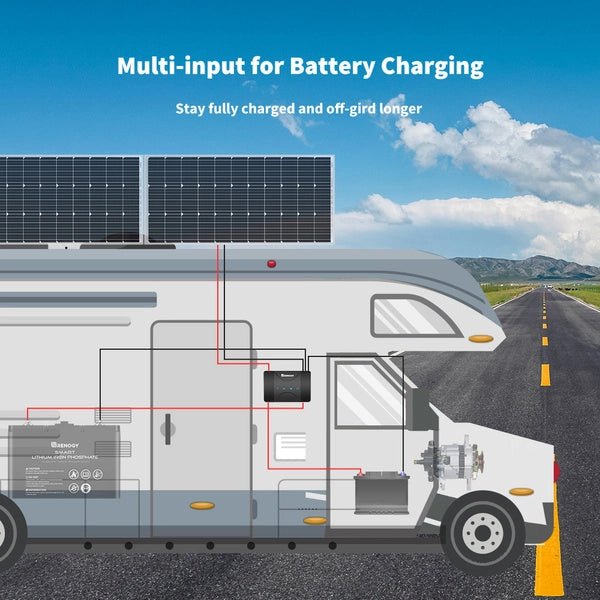

- Multi-input for Battery Charging
Renogy DC-DC On-Board Battery Charger is designed to charge service batteries from a starting battery linked to an alternator or by utilizing solar panels connected directly to the unit, offering multiple charging options and ensuring your battery stay fully charged.
- 3-phase MPPT Charging Technology
With Built-in Maximum Power Point Tracking (MPPT), Renogy DC-DC On-Board Battery Charger will charge your service batteries with maximized solar power, providing 3-phase charging (Bulk, Boost and Float) to regulate the whole charging and ensure the batteries will be accurately charged at the correct voltage levels to 100%.
- Multiple Protections
Renogy DC-DC On-Board Battery Charger has multiple intelligent protections includes battery isolation, over-voltage protection, battery temperature protection, over-current protection, overheat protection, reverse current protection, solar panel and alternator reverse polarity protection, guaranteeing charging safety and protecting you batteries.

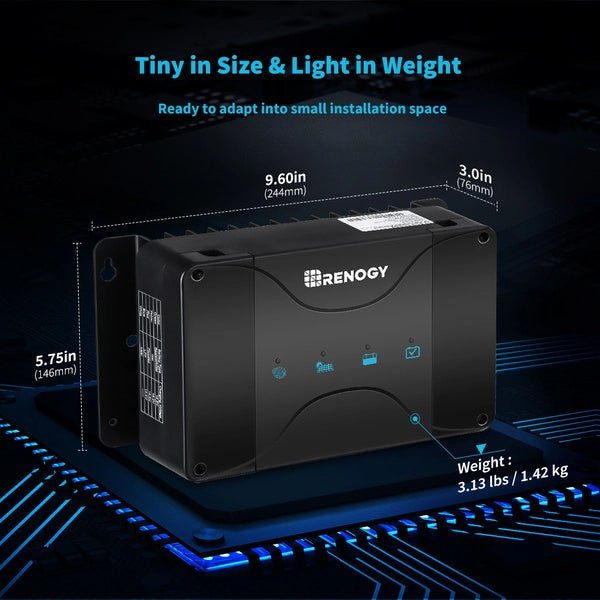

- Light & Small, Ready to be Set Up
With only 9.6in in length, 5.7in in height, and 3.13lbs in weight, Renogy DC-DC On-Board Battery Charger is ready to be installed and adapt to any tiny narrow installation space, resolving your concern from limited room in you vehicle.

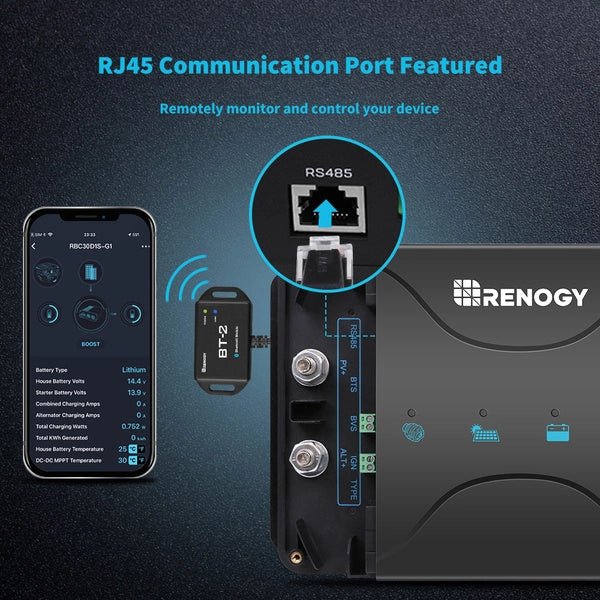

- RJ45 Communication Port Featured
Bluetooth Monitoring Ready! Exclusively available with the BT-2 Bluetooth Module accessory and Renogy DC Home App available on the IOS and Google Play Stores, you can monitor this device remotely and simply through your phone and stay constantly updated.
| SPECIFICATIONS | |
|---|---|
| System Voltage : 12VDC | Battery Voltage Range : 9-16VDC |
| Maximum Charging Current : 30A | Battery Type : SLD/AGM, GEL, FLD, LISER |
| Service Battery Charging Mode: MPPT | Charging Efficiency : Up to 97% |
| Max. Solar Input Voltage : 25V | Maximum Solar Input Power : 400W |
| Alternator Input Voltage : Traditional Alternator: 13.2-16VDC Smart Alternator (Euro 6): 12-16VDC |
Maximum Alternator Input Power : 400W |
| Self-consumption : 60mA | Operating Temperature Range : -31°F ~ 149°F |
| Dimensions : 9.6*5.7*3.0in | Weight : 3.13 lbs / 1.42 kg |
| Communication Protocol:RS485 | Ground Type:Negative |
| Terminal Size:M8*1.25 - 10mm | Temperature Compensation: '-3mV/C/2V |
| Storage Temperature Range: -40°F - 176°F | Operating / Storage Humidity: 0%-95%, No Condensation |
| Certifications | |
| FCC | YES |
| ROHS | YES |
