DESCRIPTION

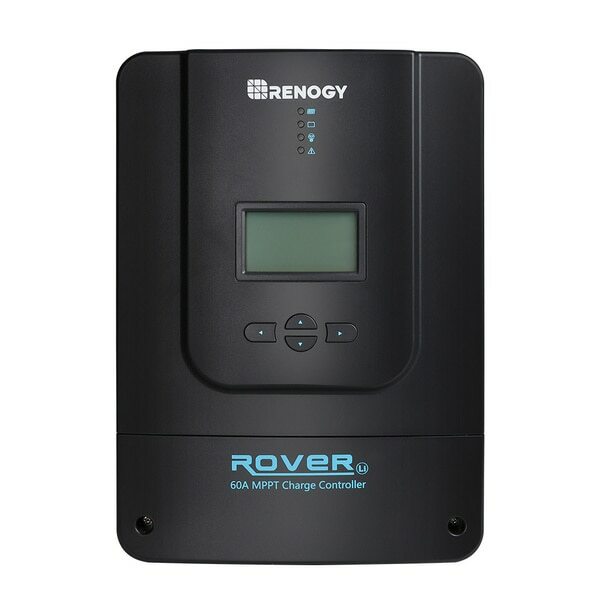

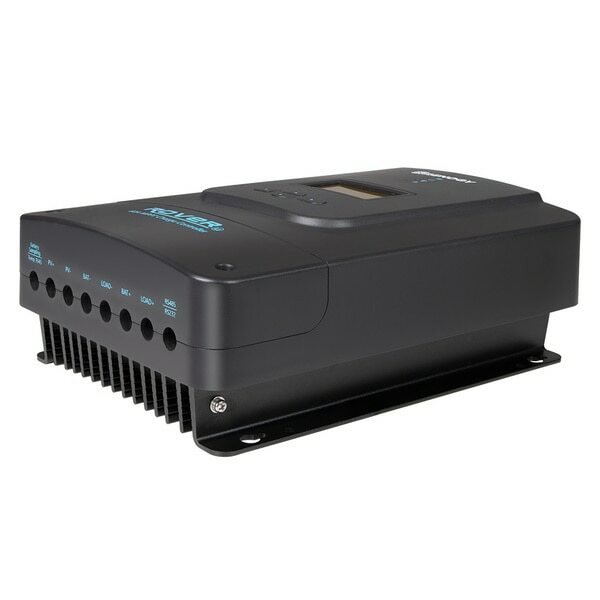

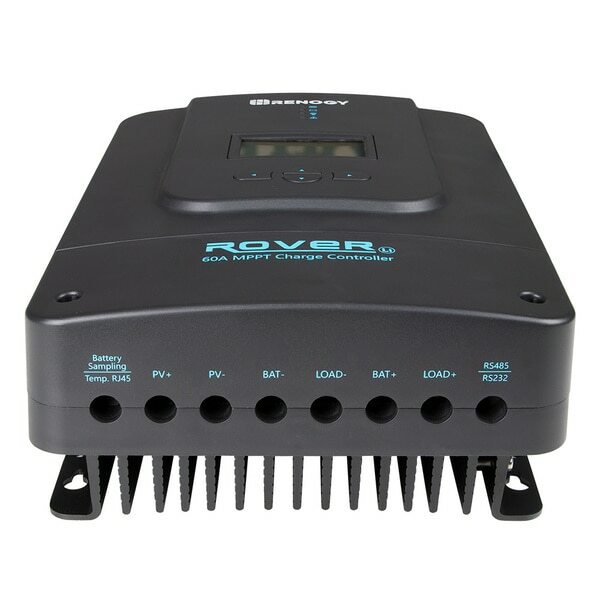

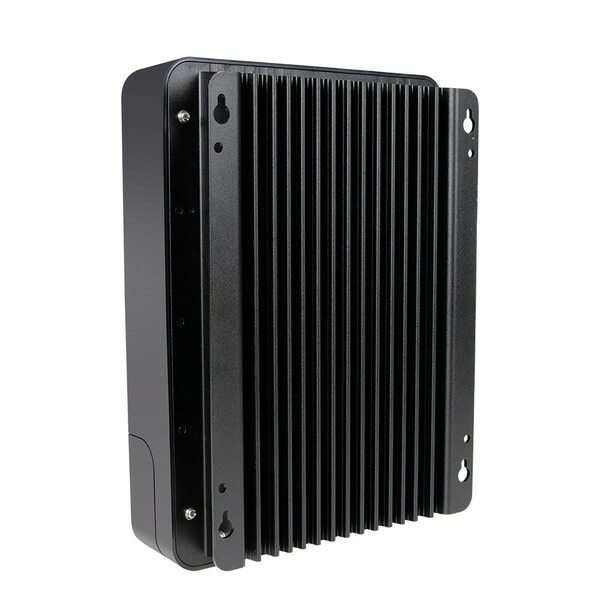

The Renogy 60A Rover MPPT Charge Controller is an intelligent negative ground controller. Built with protections against reverse polarity, short-circuiting, overheating, and more, this MPPT controller is also capable of self-diagnosing itself in the event of an error. Its durable shell protects against general wear and tear, and aluminum heat sink allows for heat dissipation. The Rover 60A can automatically detect 12V/24V/36V/48V systems and can handle various battery options such as GEL and Lithium. Pair this charge controller with the Renogy BT-1 and the Renogy DC Home smart phone App to view your system's performance in real time and make parameter changes straight from your smart device.
KEY FEATURES
- ETL Listed to UL1741 and CSA C22.2.
- Automatically detects 12V/24V/36V/48V DC system voltages.
- Deep Cycle Sealed, Gel, Flooded, and Lithium battery option ready.
- Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.
- Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.
- LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
- Features diverse load control; also capable of charging over-discharged lithium batteries.
- RS232 port allows the Rover to communicate with the BT-1 Bluetooth module, which can pair with the Renogy DC Home smart phone App.
DOWNLOAD LINKS
PACKAGE INCLUDES
|
Rover 60 Amp MPPT Solar Charge Controller
1 x
|
Remote Temperature Sensor
1 x
|
|
Mounting Brackets
4 x
|
Options: BT-1 Bluetooth Module
1 x
|
SPECIFICATION
| ROVER 60 AMP MPPT SOLAR CHARGE CONTROLLER | |
|---|---|
| Nominal Voltage: 12V/24V/36V/48V Auto Recognition | Rated Charge Current: 60A |
| Rated Load Current: 20A | Max. PV Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V |
| Max. PV Input Voltage: 150 VDC (25°C), 140VDC (-25°C) | Self-Consumption: 0.7W-1.2W |
| Operating Temperature: -35°C to 45 °C | Temperature Compensation: -3mV/°C/2V (default) |
| Dimensions: 285 x 205 x 102mm (11.22 x 8.07 x 4.00in) | Weight: 7.9lbs |
| Enclosure: IP32 | Terminals: 25mm² 4AWG |
| OPTIONS: BT-1 BLUETOOTH MODULE | |
| Communication Protocol: RS232 | Port Type: RJ12 |
| Input Voltage: 12V | Operating Power Consumption: 0.05W |
| Standby Power Consumption: 0.04W | Serial Baud Rate: Fixed Baud Rate 9600bps |
| Communication Range: ≤82ft | Operation Temperature: -20℃~85℃（-4°F to 185°F） |
| Cable Length: 5.00 m (16.4 ft) | Dimensions: 2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm) |
| Protection Grade: IP54 | Weight: 130g (4.58oz) |
| Certifications： | |
| CE | YES |
| ROHS | YES |
WARRANTY INFORMATION
| Accessories | 1-year material warranty |
