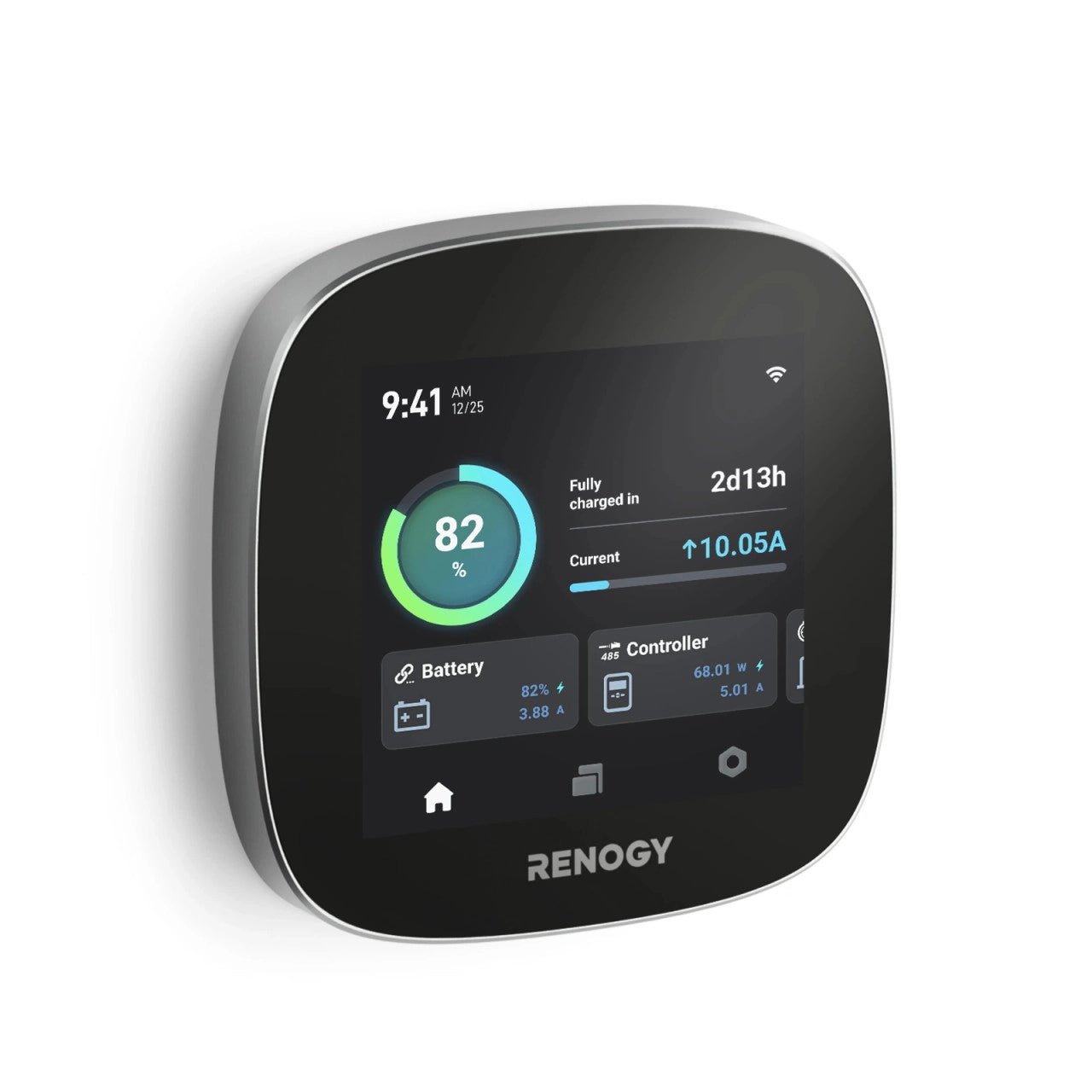

RENOGY ONE Core



Need leveling for more comfort?
ONE Core assists you in adjusting your RV's position to achieve optimal stability, ensuring a comfortable and safe experience.

Built-in 6-axis leveling sensor
Highly accurate and responsive detection of changes in orientation and rotational movement

Real-time RV leveling status
Instant and accurate updates about your vehicle's stability on both ONE Core Panel and DC Home App.

Make it a smart home ONE Core also serves as a smart home hub, allowing you to connect your smart home appliances like door entry alert or climate sensors, enjoy added convenience and security of home automation.

PACKAGE INCLUDES

Renogy ONE Core 1 x	Quick Guide 1x
Power Cable 5m	Mounting Screw M3.5 x14mm x4 (1 extra)

ELECTRICAL DATA
Operating Voltage	8-60 VDC (5 VDC for USB Type-C)
Power Consumption at 12V	Operating, WiFi On, 100% illumination: 3.2 W Operating, WiFi On, 50% illumination: 2.4 W Operating, WiFi On, 0% illumination: 1.9 W Off, logger still active: 1.5 W

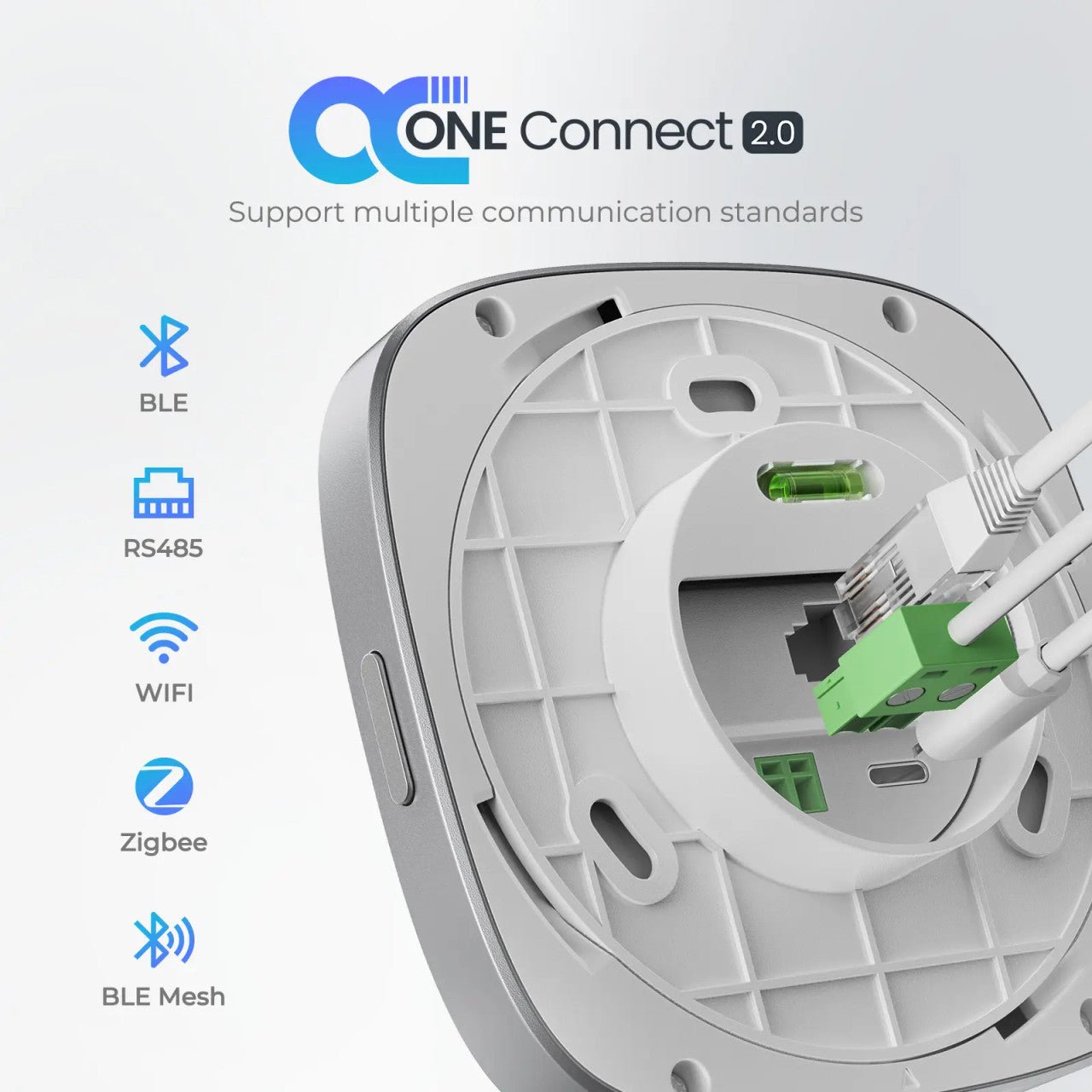

Communication	Wi-Fi (IEEE 802.11b/g/n 2.4 GHz) Bluetooth LE and Bluetooth Mesh Zigbee 3.0 (IEEE 802.15.4) RS-485
Touch Screen	4 inches (480 x 480p)
Leveling Range and Accuracy	±89°, 0.1°
GENERAL DATA
Model	RSHGWSN-W02W-G1
Operating Temperature	-4℉ to 158℉ (-20℃ to 70℃)
Operating Humidity	0% to 95% RH
Operating Altitude	Less than 5000m above sea level
Installation	Flush mount or place on a table

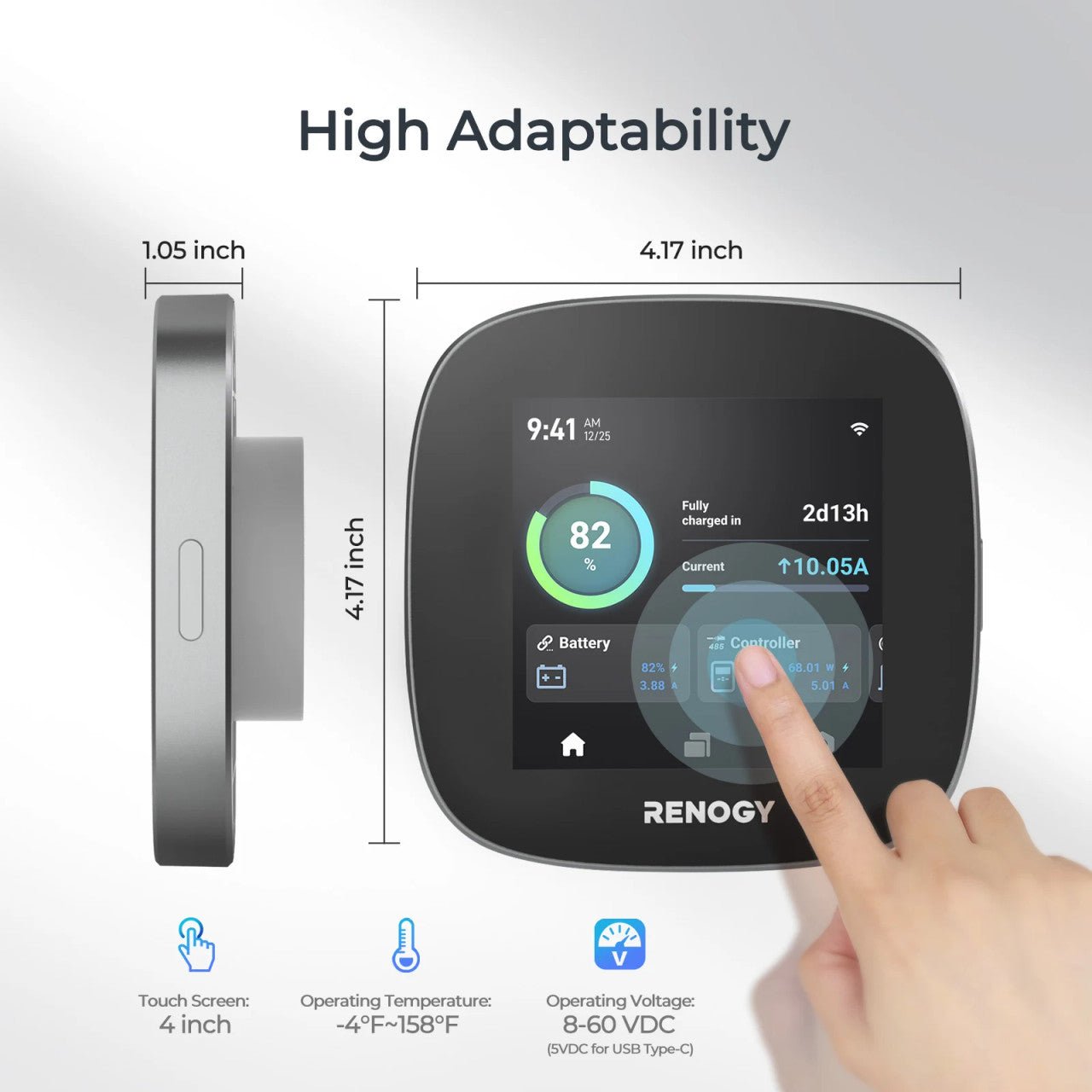

Dimensions	4.17 x 4.17 x 1.05 in (106 x 106 x 26.6 mm)
Weight	0.28 lb (128g)
Certification	CE, FCC, RoHS, TSCA, BQB, IC-ID
Warranty	2 years
