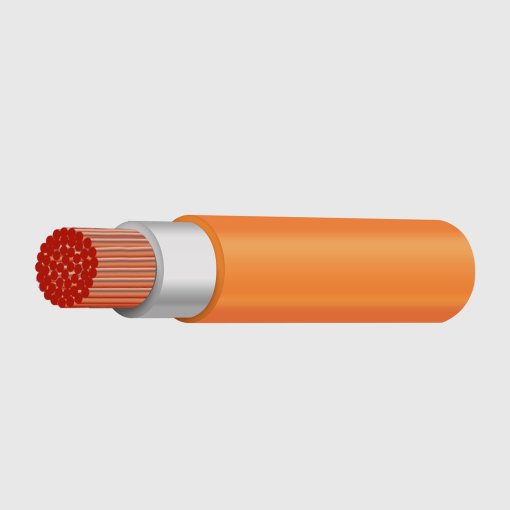

50mm² flexible power/welding single core cable for fixed power applications:
- Power: Switchboards, busbars, transformers
- Welding: Earth and electrode leads
- Automotive: Jumper Leads, Battery chargers
Pack Qty: By the metre
Nominal Area: 50mm²
Nominal O.D: 14.90mm
AMP Rating* two single cores: 185
Voltage Drop mV/Am at Max operating Temperature–Single Phase: 0.96
Voltage Drop mV/Am at Max operating Temperature–Three Phase: 0.83
Conductor: Flexible Class 6 Bunched OXYGEN FREE Plain Copper Wire to AS/NZS 1125
Conductor Qty & Diameter: 1568/0.2mm
Insulation (White): RoHS Compliant Nitrile (NBR) Modified P.V.C. type V90HT to AS/NZS 3808
Insulation Thickness:1.4mm
Sheath (Orange): RoHS Compliant Nitrile (NBR) Modified P.V.C. type V90HT to AS/NZS 3808
Sheath Thickness:1.4mm
Electrical Resistance at 20°C: 0.386 ohm/km
Mass: 52.84kg/100mmm
Maximum operating temperature: 75°C in normal Use OR 105°C where not subject to, or protected from, mechanical damage (refer AS/NZS 3008.1.1:2009)
*AMP Ratings are to AS/NZS 3008. Unenclosed-Spaced at 40°C (in air), 25°C (in ground). Refer AS/NZS 3008 for derating factors – For Welding AMP Ratings refer to AS/NZS 1995.
