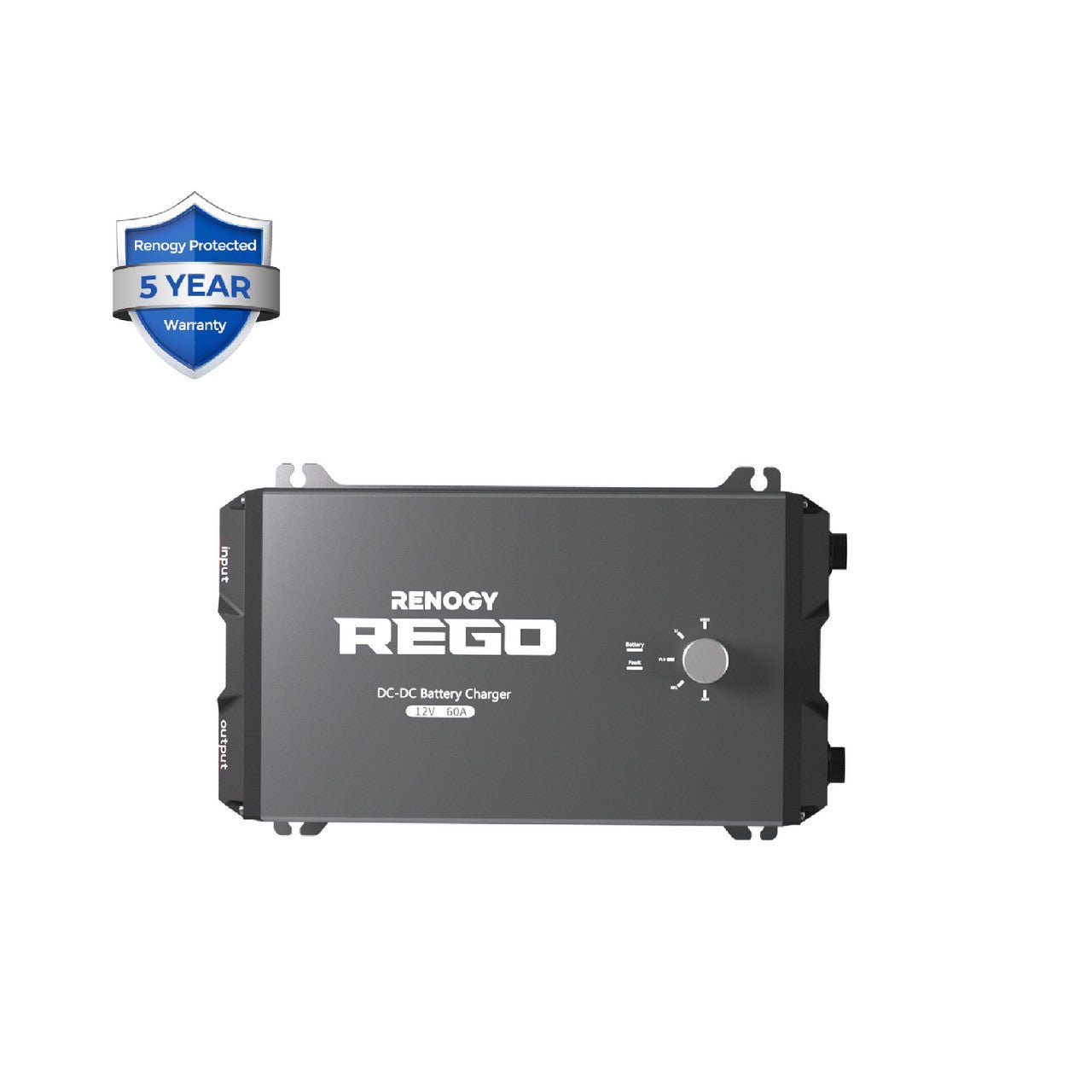

Renogy REGO 12V 60A DC-DC Battery Charger
Description
The REGO DC-DC Battery Charger's exclusive bidirectional charging technology not only provides the most effective way to charge your house batteries from the starter battery on the go but also recharges and maintains your starter battery when the house batteries are full. The battery charger is compatible with the most popular 12V alternators and batteries. 4-Stage charging provides reliable and effective charging of your batteries. The REGO DC-DC battery charger is ideal for RVs, commercial vehicles, boats, yachts, and vans that need stable energy on the go!
If you have any questions regarding this product, please call Karim - 0417362209
Key Features

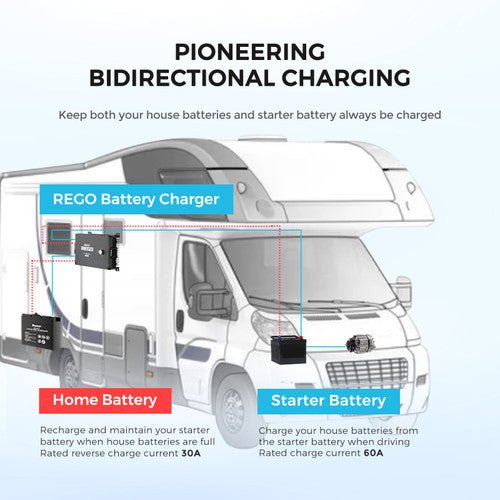

- Exclusive Bidirectional ChargingThis battery charger can charge your house batteries from the starter battery when driving and recharge your starter battery when the house batteries are full. Keep your house batteries and starter battery at peak performance on the go.

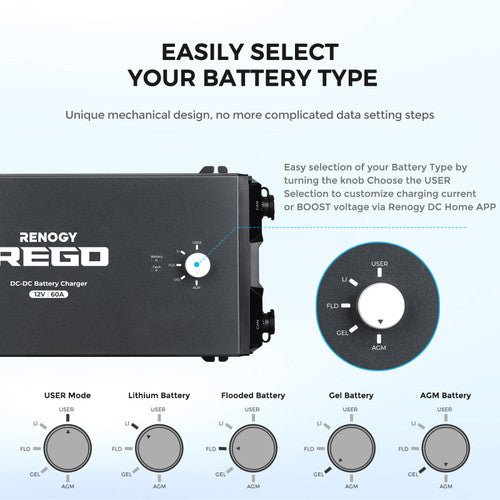

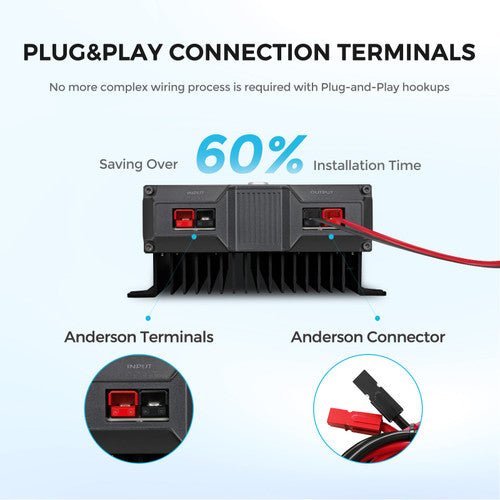

- Easy Installation and OperationREGO DC-DC battery chargers use Anderson terminals instead of ring terminals for a simple, easy connection that reduces installation time by 60%! REGOs simple design eliminates tedious data settings and lets you switch between batteries by just turning a knob.

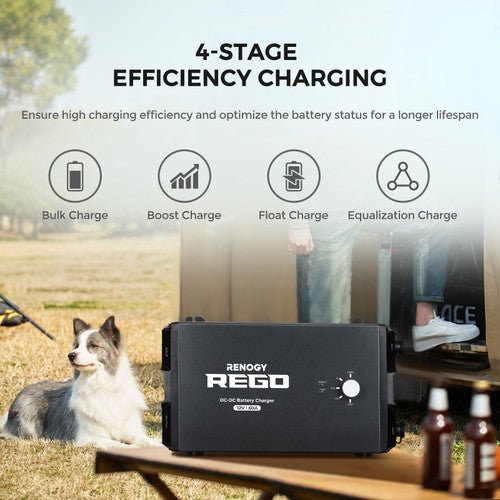

- High-Efficiency Charging4-stage charging technology (Bulk, Float, Absorption and Equalize) maximize charging efficiency and optimizes battery levels for a longer lifespan.
- Compatible with Most Batteries and AlternatorsThe REGO DC-DC battery charger is compatible with multiple types of batteries: AGM, SLD, Flooded, Gel, and Lithium, providing a powerful solution for different occasions. Moreover, it can interoperate with both traditional and smart alternators.

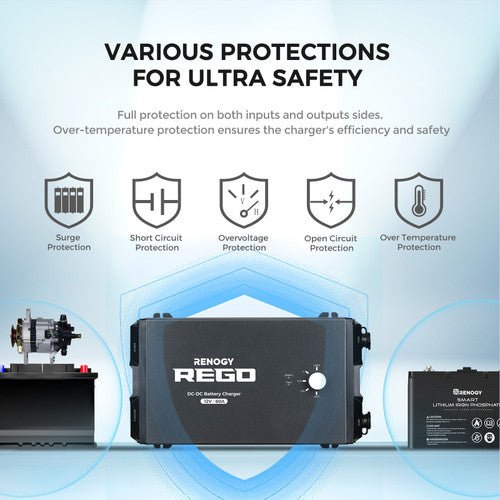

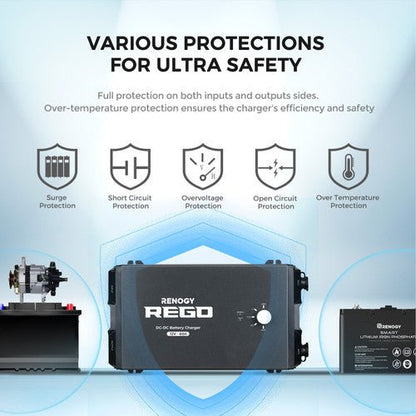

- Integrated Safety FeaturesREGO chargers offer Overvoltage Protection, Overtemperature Protection, and Reverse Polarity Protection on both inputs and outputs to ensure operation safety. They have reverse polarity protection and multiple safety certifications including FCC-ID, CE-RED, MIC, etc.

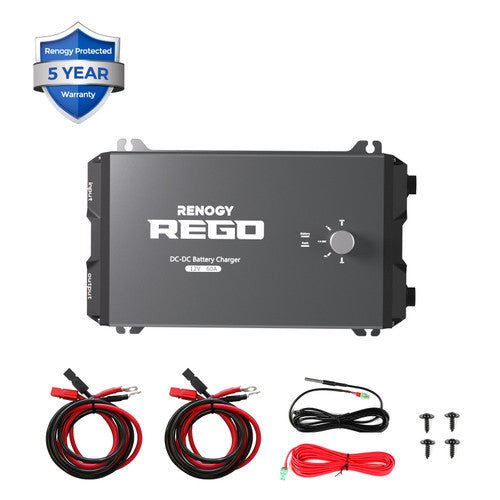

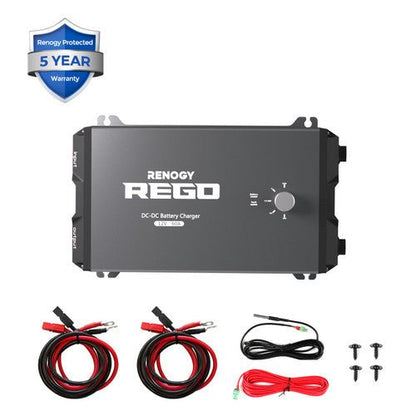

Package Includes
|
REGO 12V 60A DC-DC Battery Charger 1 x |
Specification
| REGO 12V 60A DC-DC Battery Charger | |
|---|---|
| System Voltage12 V | Rated Max Charge Current60A |
| Rated Max Charge Power800 W | Battery TypesSLD/AGM;FLD;GEL;USER;LI |
| Self-Consumption50 mA | Max.Alternator Input Current70A |
| Charge EfficiencyUp to 94% | Max.Alternator Input Power800W |
| Max.Alternator Input Voltage16V | Battery Operating Range10 -16V |
| Alternator Input VoltageTraditional Alternator: 13.5-16VDC Smart Alternator (Euro 6): 12.5-16VDC |
Power Limiting ProtectionUp to 800W/12V |
|
Operating Temperature Range-20 - 60 / -4 - 140 |
Grounding TypeCommon Negative Lug |

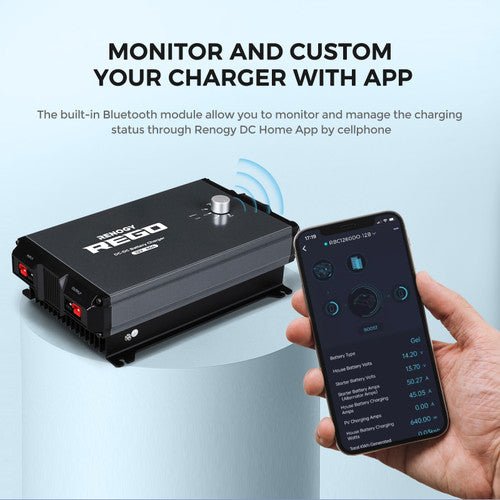

| Storage Temperature Range-35 - 65/ -31 - 149 | CommunicationModebus ; RV-C |
| Humidity0%-95%, No Condensation | Dimensions (L x W x D)13.91 x 8.37 x 4.02 in / 353.53 X 212.75 X 102.21mm |
| Temperature Compensation-3mV / / 2V (Non-Lithium) '0mV / / 2V; no compensation (Lithium) |
Weight7 lbs/ 3.12kg |
| Terminal SizeAnderson PP75 | Terminal Range8AWG - 6AWG |
| Certifications | |
| CB | YES |
| FCC | YES |
| CE | YES |
| UKCA | YES |
| MIC | YES |
Warranty Information
| Material and workmanship warranty | 5 Year |
