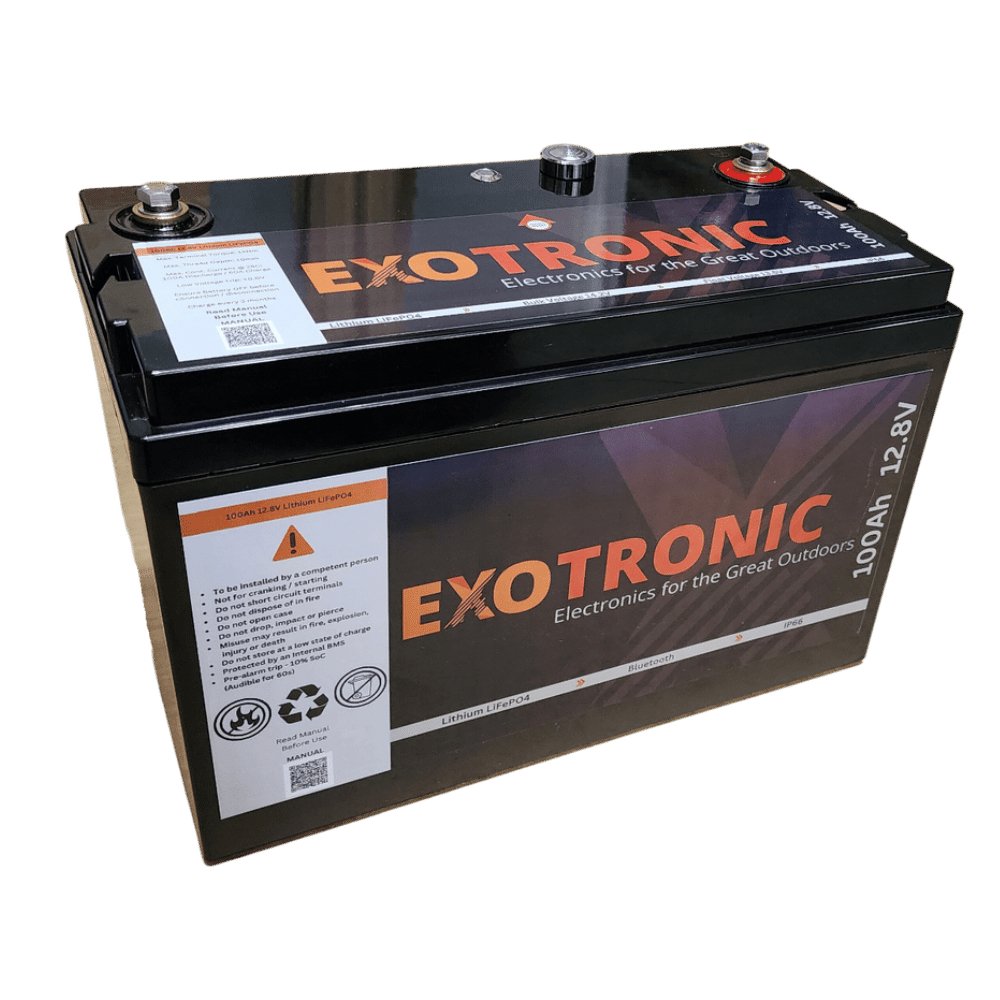

Exotronic 12V 100Ah Smart Bluetooth Lithium Battery

Product Highlights

  • Bluetooth monitoring to always know the condition of your battery
  • Enough power for your typical weekend setup
  • On/Off button for easy activation and storage of battery



Unwind Designs Review: After a quality budget battery packed with features? This is the perfect battery for most basic to moderate systems. If you’re after something to run high powered inverters then look at our premium batteries (Listings coming soon).



Free shipping to metro areas. Areas outside of metro regions may incur additional shipping fees which will be invoiced after checkout.



Features

  • Real Time Bluetooth Monitoring

  • IP66 Water Resistance and Dustproof

  • On/Off/Reset Button

  • Pre-trip Audible/Visual Alarm for 60 seconds at 10% State of Charge

  • JBD BMS

  • 1.2A Active Cell Balancer

  • A Grade Aluminium-cased Prismatic Cells featuring Safety Rupture Disc

  • 0-100% Useable Capacity

Applications

Exotronic Lithium Batteries are perfect for Caravan/RVs, 4x4s, Marine, backup power and many other applications.
The battery has been vibration tested and is machine sealed for reliable waterproofing.  Making this battery particularly suitable for off-road and marine applications and those wanting extra reliability.
Not for under bonnet or cranking/starting applications.

Safety

LiFePO4 is one of the safest types of lithium batteries. This type of lithium has excellent safety in for almost every possible failure such as: Over-discharge, over-charge (to 20V), short-circuit, drop, heating, crush, nail penetration, seawater immersion, thermal cycling, low air pressure.
The casing is made from heavy duty ABS plastic.
The cells used in this battery contain rupture discs designed to release pressure in the cell if a failure occurs, preventing the risk of high pressure developing in the cell and compromising safety.
The most common cause of fire in lithium batteries is caused by over-charging.  This is one of the functions the JBD BMS protect against.
BMS Protections Include:

  • Discharge/Charge Overcurrent

  • Short Circuit

  • High/Low Temperature

  • High/Low Cell Voltage (Overcharge/ Overdischarge)

Reliability

Using A Grade prismatic aluminium cased LiFePO4 GFB cells.
GFB Lithium produces lithium cells trusted by many manufacturers such as BMW and Volkswagen.
1.2A Active Cell Balancer prevents the cells from out-of-balance events and extends the life of the battery by ensuring the cells wear evenly.

Parallel Connection

Connect up to 4 batteries in parallel to increase capacity

Maintenance

LiFePO4 batteries have no memory effect so are safe to be stored for long periods, only requiring a charge at least once every 3 months.

Lifespan

These cells are designed to last 3,000 cycles at 100% discharge cycles.  Typically 10-12 years usage in many applications.

On/Off/Reset Button

  • Press the button in to turn on the battery

  • Depress the button to turn off the battery

  • Press the button twice to reset the battery after a trip, alternatively connect a dark-start capable lithium charger

Bluetooth Smart

The JBD BMS includes Bluetooth, allowing real time viewing of the individual cell voltages, battery temperature, current, state of charge, state of the charge/discharge MOSFETs and alarms.

Sale price$750.00
